Bimma EWD - Wiring Diagrams

This application contains all the electrical wiring diagrams and the location of electronic components (ECU, Fuse Box..) for BMW cars from 1998 to 2025. Regularly updated for trustful Electrical wiring diagrams and can be used as a reference when you do repairing BMW cars.

Currently includes the following models (all models from 1998-2025):

1 series : E81, E82, E87, E88, F20, F21, F40, F52,
F70
2 series : F22, F23, F45, F46, F87, G42, U06, G87
3 series : E46, E90, E91, E92, E93, F30, F31, F34,
F35, F80, G20, G21, G28, G80, G81
4 series : F32, F33, F36, F82, F83, G22, G23, G26
G82 ,G83
5 series : E39, E60, E61, F10, F11, F07, F18, G30,
G31, G38, F90, G60, G61, G68, G90,
G99
6 series : E63, E64, F12, F13, F06, G32
7 series : E65, E66, E67, E68, F01, F02, F03, F04,
G11, G12, G70, G73
8 series : F91, F92, F93, G14, G15, G16
X series : E84, E83, E53, E70, E71, F48, F39, F15,
F16, F25, F26, F85, F86, F95, F96, F97
F98, G01, G02, G05, G06, G07, G08,
G09, G45, G48, U10, U11, U12
Z series : E52, E85, E89, G29
I series : I01, I12, I15, I20

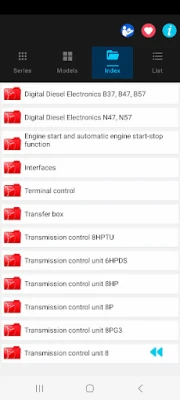

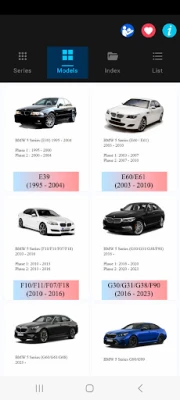

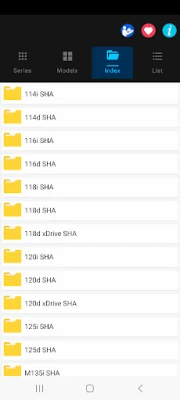

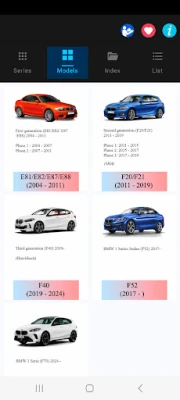

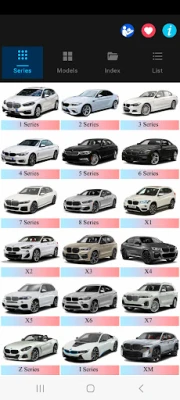

Application features:

- Download function
- Print function
- Favorites
- No ads
